Sydney Harbour Bridge – Specialist Access & Platforms

APS delivered 104 suspended access platforms and 64 birdcage scaffolds on the Sydney Harbour Bridge, providing innovative Technitruss® access solutions that enabled safe, efficient and on-schedule remediation works across this iconic heritage structure.

The Project

Location: Sydney Harbour Bridge, Sydney, NSW
Client: Sydney Program Alliance (SPA)
Contract Type: Design, Engineering, Manufacture, Installation, Relocation and Removal of Specialist Suspended Access Platforms & Scaffolding

The Sydney Program Alliance (SPA) is a long-term alliance between Transport for NSW, John Holland Group, Jacobs and Freyssinet Australia, established to deliver ongoing maintenance, upgrade and preservation works across the iconic Sydney Harbour Bridge and its surrounding infrastructure.

Opened in 1932, the Sydney Harbour Bridge remains one of Australia’s most significant engineering landmarks and busiest transport corridors. Spanning 503 metres across Sydney Harbour and constructed from approximately 52,800 tonnes of steel, the bridge carries more than 160,000 vehicles daily, as well as rail, pedestrian and cycling traffic. Continuous exposure to a harsh marine environment and decades of operational loading require an ongoing programme of inspection, maintenance and structural remediation to preserve the asset for future generations.

APS Industrial Services was engaged by SPA to deliver specialist access solutions supporting critical inspection, maintenance and refurbishment activities. The scope included the design, engineering, manufacture, installation, relocation and removal of bespoke suspended access platforms and scaffolding systems across multiple work fronts. Operating within a live transport and heritage-sensitive environment, APS provided safe, efficient and innovative access solutions that enabled essential maintenance works to be completed while minimising disruption to bridge operations.

The Scope

APS was engaged to design, engineer, manufacture, install, relocate and remove a series of specialist suspended access platforms to facilitate remedial works to the underside of the Southern Causeway, Northern Causeway and Overwater sections of the Sydney Harbour Bridge. The access systems were specifically engineered to provide safe and efficient working environments for inspection, maintenance, repair and asset preservation activities across challenging and difficult-to-access areas of the structure.

Working closely with the Sydney Program Alliance and a diverse range of stakeholders, including the Sydney Port Authority, NSW Parks, Transport for NSW (TfNSW), maritime operators and the local community, APS successfully delivered a highly complex access solution within a live transport and marine environment. Extensive planning, engineering verification and stakeholder coordination were required to ensure bridge, road, rail and harbour operations remained unaffected throughout the works.

Through innovative engineering and precise execution, APS installed, relocated and removed a world-leading suspended access system that enabled critical remediation works to be undertaken safely and efficiently on one of Australia’s most iconic structures. The project demonstrated APS’s capability to deliver complex temporary works and access solutions while maintaining the highest standards of safety, quality and operational performance.

Key elements of the project included:

Suspended access platform design and installation – Engineering, manufacture and deployment of bespoke suspended access systems
Platform relocation programme – Progressive relocation and modification of access structures to support multiple remedial work fronts
Stakeholder engagement and approvals – Ongoing interface management with Sydney Program Alliance, Sydney Port Authority, NSW Parks, TfNSW and community stakeholders to ensure compliance and uninterrupted operations
Stakeholder engagement and approvals – Ongoing interface management with Sydney Program Alliance, Sydney Port Authority, NSW Parks, TfNSW and community stakeholders to ensure compliance and uninterrupted operations

The Outcomes & Delivery

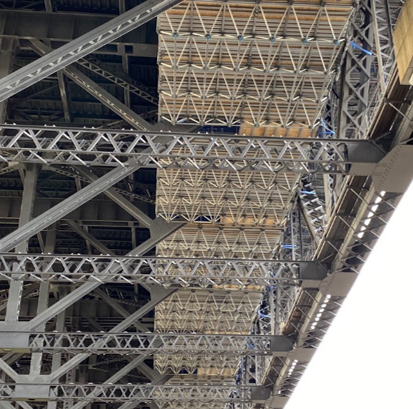

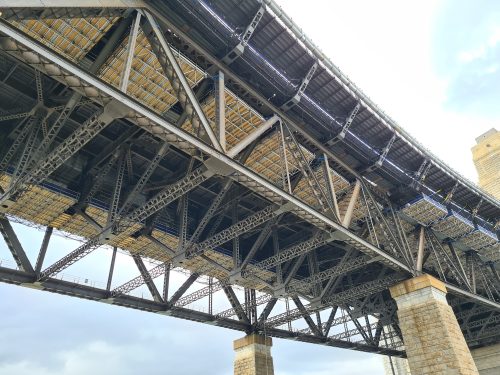

APS successfully delivered a total of 104 suspended access platforms across the Sydney Harbour Bridge remediation programme, incorporating 64 birdcage scaffolds erected on the suspended structures to provide safe and efficient working environments for multiple trades. Utilising APS’s proprietary Technitruss® system, the team overcame significant engineering and logistical challenges associated with accessing the bridge’s complex geometry, restricted work zones and live operational environment. The access solutions successfully achieved the load capacities specified by the Sydney Program Alliance, enabling critical remediation works to be completed safely, efficiently and with minimal disruption to bridge operations.

Quality assured and on-time delivery – All platforms were designed, engineered and manufactured in accordance with relevant Australian Standards and project specifications. Careful logistics planning and staged deliveries ensured efficient material handling within the highly constrained laydown and access areas beneath the bridge.

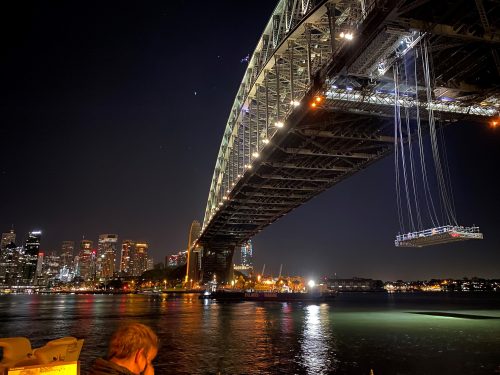

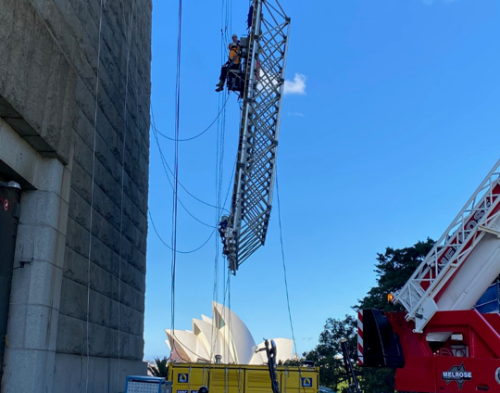

Complex platform installation execution – Specialist rigging methodologies and innovative installation techniques were developed to safely position platforms in difficult-to-access locations, including over live traffic corridors, marine environments and structurally constrained areas.
Programme certainty and operational efficiency – Platform installation, relocation and removal activities were consistently delivered within, and in many cases ahead of, the alliance programme requirements, enabling remedial works to progress without delay.

The successful delivery of this project reinforced APS’s reputation as a leader in specialist access engineering, demonstrating the capability to provide innovative temporary works solutions on nationally significant infrastructure assets where safety, quality and programme performance are paramount.

Unparalleled access capability – The Technitruss® platform system provided exceptional access to previously challenging work fronts, creating safe and productive workspaces that maximised efficiency for inspection, repair and remediation crews.
Engineering excellence – Bespoke platform designs successfully accommodated complex loading requirements, environmental conditions and interface constraints while maintaining structural integrity and worker safety throughout the project lifecycle.
Outstanding safety performance – Through rigorous planning, engineering controls and disciplined execution, APS delivered the works while maintaining the highest standards of safety across a complex live transport and marine environment.
